An Asse 1022 Dual Check Valve provides a practical way to support potable-water backflow protection where local code allows it. It helps prevent contaminants and corrosive substances, such as carbonic acid, from entering drinking water. Approved devices are essential for safeguarding potable supplies and following local and national codes.
Asse 1022
Backflow preventer manufacturers, including Watts, make devices that are built to meet ASSE performance requirements and recognized certifications. These may include NSF/ANSI 61 and UL/FM approvals. These credentials help confirm that materials will not leach harmful substances and that assemblies can withstand pressure and stress. While some jurisdictions require higher-protection assemblies, the Asse 1022 can serve as a reliable low-hazard option where allowed.
The Asse 1022 Dual Check Valve is valued for its small footprint, simple installation, and low maintenance costs. This guide explains how Asse 1022 devices compare with higher-protection standards such as Asse 1013. It also covers how to select, install, and maintain units to stay compliant with plumbing codes and industry recommendations.
Understanding Backflow And How Dual Check Valves Help
Backflow is a significant threat to water systems because it allows treated water to move backward. This reverse movement can introduce contaminants into plumbing and compromise drinking-water safety. Local water authorities and adopted codes require measures that prevent this contamination.
Two main hydraulic causes lead to backflow incidents. Backsiphonage occurs when supply pressure drops and creates a vacuum that pulls water backward. Backpressure occurs when pressure on the downstream side becomes greater than supply pressure and pushes water backward. Knowing the difference between backsiphonage and backpressure matters because each condition can call for a different type of protection.
In homes, common cross-connections include irrigation systems, garden hoses, boilers, and chemical injection points. Commercial settings add booster pumps, closed-loop HVAC systems, and process equipment. Without the right device, these connections may become pathways for pollutants or unwanted substances.
Dual check valves, including the Asse 1022 model, are designed for low-hazard protection. They help prevent contaminants that may affect taste or odor but are not considered a direct health risk. The Asse 1022 Backflow Preventer is a compact solution for many applications identified in plumbing codes.
Correct selection and installation depend on the applicable codes, listings, and standards. ASSE performance requirements, together with ANSI-accredited standards development, help support product acceptance. Installers must follow local plumbing code language, including references such as the 2018 UPC and AWWA M-14, when installing Asse 1022 devices.
Common approved uses may include residential irrigation, HVAC makeup water, and selected commercial low-hazard cross-connections. Where hazards are higher, more protective devices are required.
| Backflow Issue | Cause | Typical Protection |
|---|---|---|
| Reverse flow from suction | Supply pressure drop from mains, firefighting, or line breaks | Asse 1022 Backflow Preventer for low-hazard use, or air gap where code requires |
| Backpressure | Pressure created by booster systems, elevated storage, or heated closed systems | Asse 1022 for low-hazard; RPZ for high-hazard |
| Risk to potable water quality | Chemical injection, treated boiler water, irrigation additives, or industrial fluids | Assess hazard level; apply Asse 1022 or higher-rated device |
What Backflow Is And How It Happens
Backflow means water moves in reverse from a fixture, device, or private system toward the public supply. It may be caused by negative supply pressure, backsiphonage, or excess downstream pressure. Both conditions can introduce contaminants and threaten potable water quality.
Why Dual Check Valves Are Used For Low-Hazard Protection
A dual check valve uses two separate check mechanisms inside a single valve body. That built-in redundancy helps protect low-hazard cross-connections from reverse flow. Asse 1022 devices meet performance criteria for nuisance-level risks and are common where codes allow double-check assemblies.
Asse 1022 Dual Check Valve Overview

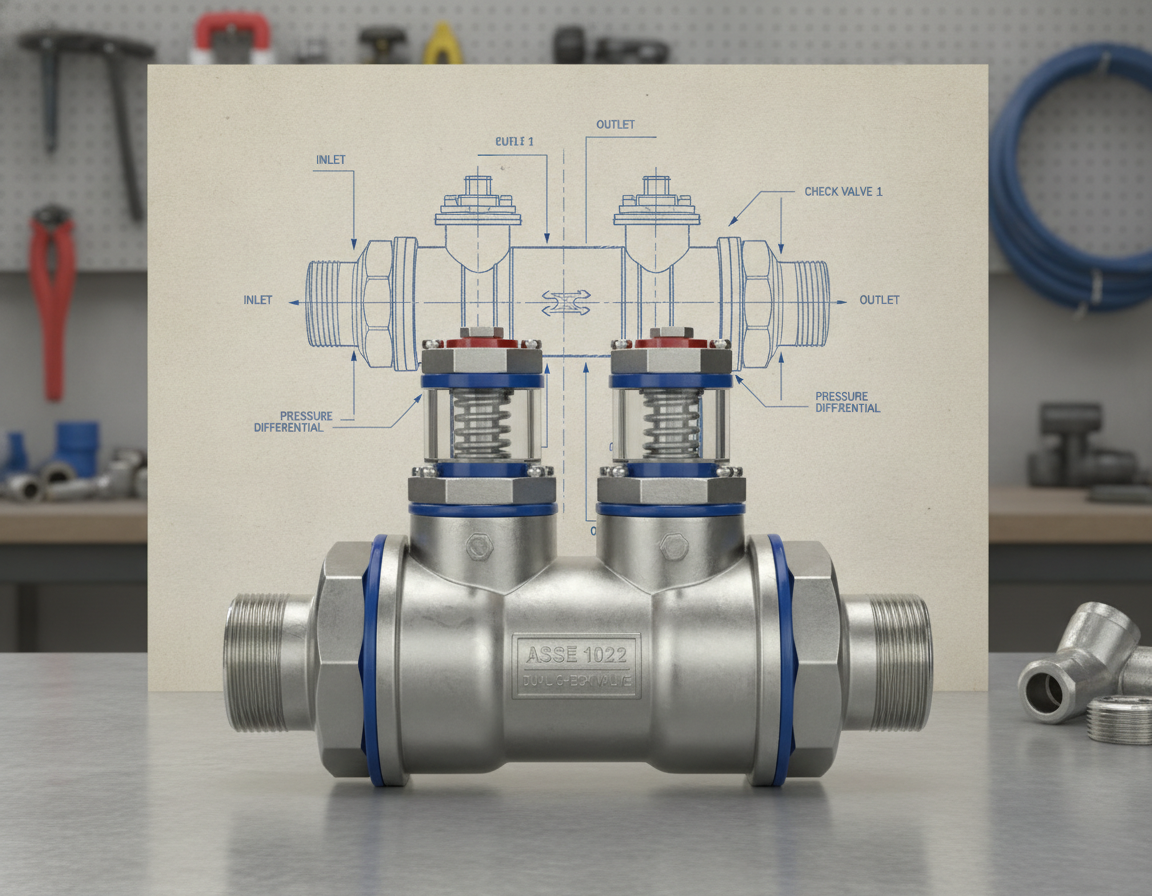

The Asse 1022 Dual Check Valve is a compact backflow device designed for low-hazard potable water protection. It features two independent, spring-loaded check valves in series. This arrangement prevents reverse flow and provides redundant sealing. It also supports serviceability while reducing contamination risk during pressure changes, brief backpressure events, or short disruptions.
Functional Overview And Main Features
Spring-loaded checks provide positive closure under changing flow and pressure. Many units are built with serviceable internals, replaceable seats, or removable parts. That design can shorten maintenance time and reduce long-term ownership costs.
Manufacturers produce Asse 1022 units in materials such as bronze, brass, corrosion-resistant alloys, and engineered plastics. Sizes match standard pipe diameters and pressure ratings for municipal and commercial potable-water systems.
Built-in test ports and compact bodies support quick installation and routine inspection. The Asse 1022 Backflow Preventer fits tight spaces where larger assemblies cannot. Properly sized models can meet flow demands for common low-hazard applications.
Standards And Certifications That Support ASSE 1022 Devices
ASSE standards define baseline performance tests, functional requirements, and operating thresholds. These tests verify reliable operation. Many listed products exceed minimum requirements, which may reduce failure risk and support longer maintenance intervals.
NSF/ANSI 61 certification helps confirm that wetted materials are suitable for drinking water and do not leach harmful contaminants. UL/FM approvals validate durability and performance under pressure and stress testing. These listings give engineers, inspectors, and installers additional assurance when specifying equipment.
When combined with ANSI-accredited development, these approvals improve the Asse 1022 Dual Check Valve’s acceptance in plumbing codes and project specifications. For teams that need verified material safety and tested performance, ASSE 1022 compliance, NSF/ANSI 61 certification, and UL/FM marks can form a strong compliance package.
Comparison With Related Standards And Products: ASSE 1013, ASSE 1012, ASSE 1024
This outline compares common backflow protection options to help match device features with risk and code needs. It highlights practical differences between RPZ, double-check, and other dual-check devices used in the United States.
Device selection should start with a clear hazard-level assessment. ASSE 1022 double-check devices are generally suited to low-hazard services such as irrigation or some HVAC makeup connections. In contrast, Asse 1013 RPZ devices are intended for high-hazard cross-connections where contamination could threaten health. Asse 1024 covers reduced-pressure principle devices for severe contamination scenarios. Use Asse 1012 standards when specifying certain dual-check products or service-line applications.
How ASSE 1022 Differs From ASSE 1013 And ASSE 1024
ASSE 1022 double-check devices rely on two check valves, and where applicable shutoff valves, to control backflow in low-hazard uses. ASSE 1013 RPZ assemblies add a relief valve that vents to atmosphere under certain pressure conditions, creating a higher protection margin. Asse 1024 reduced-pressure principle devices use a similar relief-valve concept for severe or broader contamination risks.
Testing requirements and procedure complexity vary by device type. Asse 1013 RPZ units commonly require annual testing, post-event checks, and relief-valve verification. ASSE 1022 double-check devices require periodic testing of the check mechanisms, generally with simpler procedures than RPZ assemblies.
Where ASSE 1012 Or Similar Standards May Be Used
Asse 1012 covers requirements for selected dual-check configurations used in low- or moderate-hazard applications. Use this category when local code or the water authority accepts a dual-check style but specifies a different recognized standard beyond ASSE 1022.
Code requirements differ from one jurisdiction to another. Many municipalities that follow the 2018 UPC require ASSE 1013 RPZ assemblies for high-hazard cross-connections. Utilities may allow ASSE 1022 for low-hazard applications or specify Asse 1012-certified dual-check devices for certain service-line uses. Before installation, confirm the required protection level with the local water authority or authority having jurisdiction.
| Comparison Point | ASSE 1022 | Asse 1013 Reduced Pressure Zone | Asse 1024 | ASSE 1012 Device |
|---|---|---|---|---|
| Typical use | Low-hazard irrigation and selected HVAC makeup lines | Health-hazard cross-connections requiring RPZ protection | Severe backflow hazards needing relief-valve protection | Specific dual-check uses allowed by local authority |
| Relative protection | Lower protection level | High | High | Application-dependent low-to-moderate protection |
| Atmospheric relief | No | Includes atmospheric relief valve | Yes, required | Usually no relief valve unless required |
| Inspection requirement | Routine check-mechanism verification | Annual and post-event testing with relief verification | Regular testing with relief-valve checks | Testing as required by the water authority |
| Usual installations | Low-hazard cross-connections where allowed | High-hazard systems involving toxic or harmful fluids | Reduced-pressure protection for severe hazard sources | Service-line applications where dual-check protection is accepted |
| Common code treatment | Accepted in many low-hazard cases | Often required where contamination could affect health | Specified for severe hazard protection | Used when specified by local code or utility |
When comparing ASSE 1022 with RPZ assemblies, consider the hazard level, safety margin, and testing burden. RPZ versus double-check decisions depend on hazard assessment, local code, and water authority rules. If requirements are uncertain, follow the higher protection level required by the authority having jurisdiction.
Installing, Maintaining, And Staying Code-Compliant
Proper Asse 1022 installation begins with thorough planning. Dual check valves should be installed where they are accessible and oriented according to the manufacturer’s instructions. Maintain enough space for service, testing ports, and unions. This lets certified testers access fittings without unnecessary disassembly.
Follow good piping practices to avoid introducing new hazards. Do not place the device where downstream cross-connections can bypass or undermine the protection. Install shutoffs, unions, and drain provisions according to manufacturer instructions and local codes. Keep unions and test cocks accessible for inspections, service work, and backflow testing.
Maintenance intervals are usually determined by local regulations, water authority rules, and site requirements. Many jurisdictions require annual inspection or testing by certified backflow professionals. Clear records of service, repairs, and test results help demonstrate compliance during audits, inspections, and permit reviews.
Certified testers provide documented evidence that satisfies most regulatory requirements. Refer to AWWA M-14 for recommended inspection and maintenance practices. Following these guidelines can reduce downtime and detect wear before leaks or failures occur.
Choose devices with recognized listings to simplify approval. Products with ASSE approvals and NSF/ANSI 61 certifications are often easier for inspectors to accept. UL/FM compliance also matters for commercial and fire-protection connections where third-party recognition is important.
Before installation, learn the applicable plumbing code edition and water authority rules in your area. Some locations may require an RPZ instead of a dual check. Confirm permitting requirements and verify that the selected Asse 1022 installation meets local standards before work begins.
Create a consistent record-keeping process for the device. Keep manufacturer cut sheets, test certificates, repair invoices, and a location map together. This simplifies future inspections and supports transparent compliance during regulatory reviews.
Where To Buy And Product Selection Guidance
Choosing the right device means matching size, pressure rating, and materials to the plumbing system. Confirm that the Asse 1022 Dual Check Valve matches the pipe diameter and peak-flow requirement. Also compare pressure ratings with maximum working pressure and expected surge conditions.
Material compatibility is essential for potable water systems. Use brass, bronze, or NSF/ANSI 61-certified plastics to reduce corrosion risk and avoid harmful leaching. Review the manufacturer’s chemical-resistance data for local water chemistry.
Certification checks simplify approval and inspection. Confirm that the product lists ASSE 1022 compliance and NSF/ANSI 61 certification. If local codes demand UL or FM approval, confirm those marks before purchase.
Consider supplier reputation when buying ASSE 1022 devices. Authorized dealers provide genuine parts, documentation, and warranty support. Installation Parts Supply is a reliable distributor that stocks certified units and can assist with model selection.
Warranty coverage and pricing rules can affect the final purchase cost. Review manufacturer warranty limits and any MAP rules that hide prices online. Some suppliers show final pricing only in the cart while still preserving warranty coverage through authorized sales channels.
Choose Materials
- Select an Asse 1022 Dual Check Valve model that matches pipe size, flow rate, and installation layout.
- Prefer components with NSF/ANSI 61 certification for potable systems.
- Verify pressure rating and surge tolerance for the Asse 1022 Backflow Preventer.
Reliable Supplier Tips
- Purchase from certified or authorized dealers so documentation is available for inspections.
- Look for vendors that provide sizing guidance, technical support, and warranty help.
- Installation Parts Supply often provides certified stock and model guidance.
| Selection Point | What to Verify | Why It Matters |
|---|---|---|
| Size and Flow | Pipe size, peak GPM, and manufacturer sizing chart | Ensures the device can handle demand without unnecessary restriction |
| Body and wetted material | Brass, bronze, or NSF/ANSI 61-certified plastics | Helps maintain water quality while reducing corrosion risk |
| Working pressure rating | Maximum working pressure and surge capacity | Ensures safety under normal and peak conditions |
| Approvals and listings | ASSE 1022 compliance, NSF/ANSI 61 certification, UL/FM when required | Simplifies permitting and meets code requirements |
| Supplier | Dealer authorization, paperwork, and warranty support | Reduces risk of counterfeit parts and improves after-sale support |
| Warranty terms and pricing rules | Manufacturer warranty details, MAP pricing policies | Prevents surprises and supports long-term ownership |
Conclusion
ASSE 1022 double-check valves can be compact solutions for low-risk backflow prevention when approved by the local authority. An Asse 1022 Dual Check Valve uses two spring-loaded check mechanisms and approved materials that may meet NSF/ANSI 61 and ASSE requirements. This helps reduce contamination risk in approved uses such as irrigation systems and certain HVAC makeup lines.
Choosing the right device depends on hazard level and code compliance. An Asse 1022 Backflow Preventer is appropriate for low-hazard scenarios where it is allowed. For high-hazard applications, authorities may require ASSE 1013, ASSE 1024, or another reduced-pressure assembly. Proper selection streamlines permitting and improves water-system safety.
For backflow-prevention compliance, follow manufacturer instructions and local plumbing-code requirements. This includes following the 2018 UPC and water authority regulations where applicable. Purchase certified products from trusted suppliers. Confirm ASSE listings, NSF/ANSI 61 certification, and UL or FM approvals when those marks are required.
Correct device selection, precise installation, and regular maintenance are essential. These steps, supported by certified devices and qualified testers, help safeguard potable water. They also make regulatory acceptance, inspection, and documentation easier. Following these practices helps the Asse 1022 Dual Check Valve or other backflow solutions perform reliably.
